CUSTOMIZÁVEL

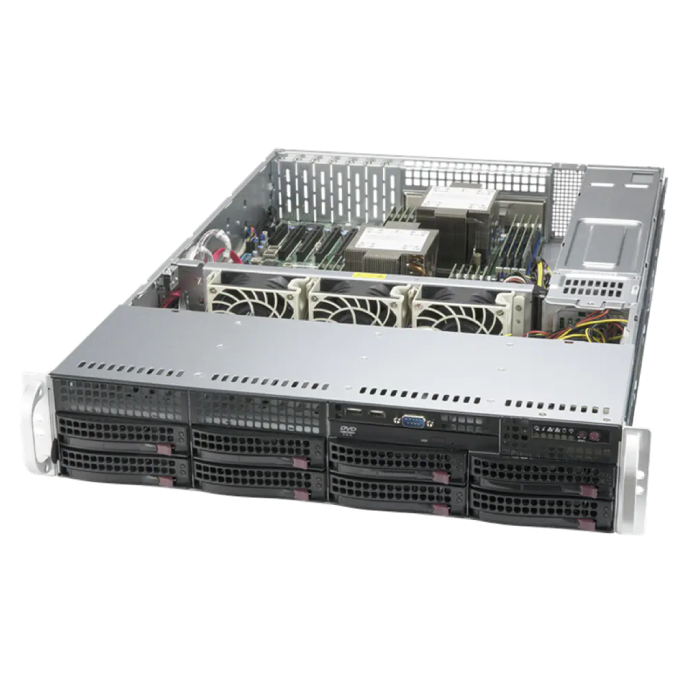

Servidor Supermicro SYS-620P-TR-800


SYS-620P-TR-800

Intel® C621A.

icone
Quer saber mais sobre este produto?
Clique no ícone do Whats nesta página e fale com nossa equipe de vendas.
  • Processadores escaláveis ​​Intel® Xeon® de 3ª geração com soquetes duplos P+ (LGA-4189)
  • CPU TDP suporta até 270W TDP
  • 3 UPI até 11,2 GT/s
  • Chipset Intel® C621A
  • SATA: Controlador Intel® C621A para 8 portas SATA3 (6 Gbps); RAID 0,1,5,10
  • Até 4 TB 3DS ECC RDIMM, DDR4-3200 MHz, até 4 TB 3DS ECC LRDIMM, DDR4-3200 MHz
  • Garantia de 3 anos ON-SITE
PART NUMBER AS-2024S-TR

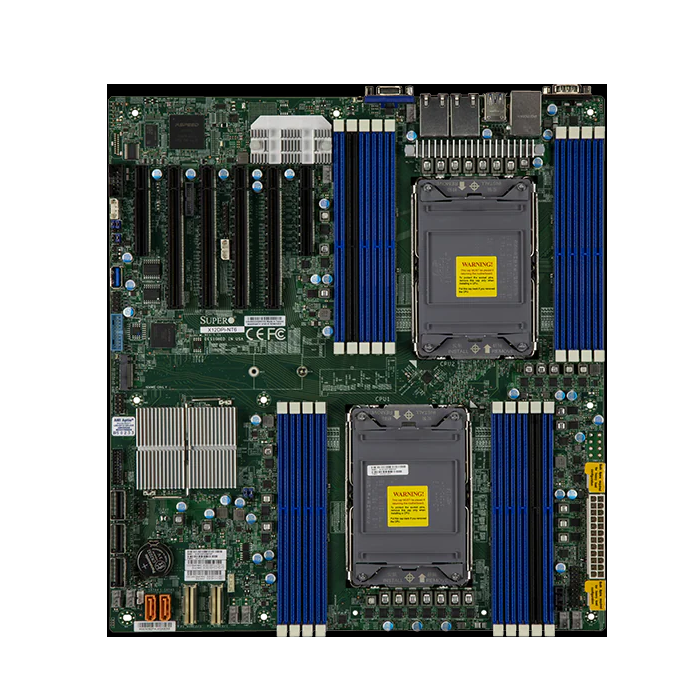

Motherboard Super X12DPi-N6
Processor CPU
Dual Socket P+ (LGA-4189)
3rd Gen Intel® Xeon® Scalable processors
Core Count
Up to 36C/72T; Up to 60MB Cache per CPU
Note
Supports up to 270W TDP CPUs (Air Cooled)
Memory Memory Capacity: 16 DIMM slots
Up to 4TB: PMem and DRAM
Memory Type: 3200MHz ECC LRDIMM/RDIMM DDR4
Intel® Optane™ persistent memory 200 series
On-Board Devices Chipset
Intel® C621A
Network Connectivity
2x 1GbE port(s)
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Dimensions and Weight Height
3.5" (89mm)
Width
17.2" (437mm)
Depth
25.5" (647mm)
Package
11.4" (H) x 26.7" (W) x 34.5" (D)
Weight
Net Weight: 36.38 lbs (16.5 kg)
Gross Weight: 69 lbs (31.2 kg)

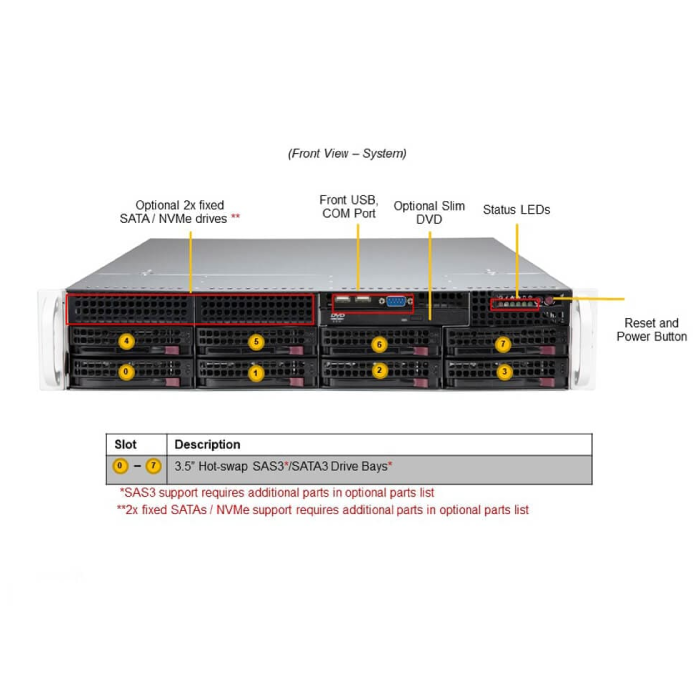

Front Panel Buttons
Power On/Off
System Reset
LEDs
HDD activity
Network activity
Power status
System information (overheat/UID)
Expansion Slots PCI-Express (PCIe)
2 PCIe 4.0 x8 LP slot(s)
4 PCIe 4.0 x16 LP slot(s)
Drive Bays / Storage Hot-swap
8x 3.5" hot-swap SATA3 drive bays (8x 3.5" hot-swap SATA drive bays can be converted to 8x SAS drive bays by adding 1x AOC-S3108L-H8IR or AOC-S3108L-H8IR-16DD + 2x CBL-SAST-0699)
M.2
1 M.2 NVMe
Peripheral Bays
1x slim DVD drive bays (optional)
System Cooling Fans
3 heavy duty fans with optimal fan speed control
Power Supply 1200W Redundant Titanium Level power supplies
Dimension
(W x H x L)
76 x 40 x 336 mm
AC Input
1000W: 100-127Vac / 50-60Hz
1200W: 200-240Vac / 50-60Hz
1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12V
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 100A / Min: 0A (200Vdc-240Vdc)
Max: 100A / Min: 0A (200Vac-240Vac)
5V SB
Max: 4A / Min: 0A
Output Type
Backplanes (gold finger)
Input / Output LAN
1 dedicated IPMI LAN port
USB
2 USB 2.0 port(s) (2 front)
4 USB 3.0 port(s) (4 rear)
Video
1 VGA port(s)
Serial Port
2 COM Port(s) (1 front; 1 rear)
DOM
2 SuperDOM (Disk on Module) port
System BIOS BIOS Type
AMI 32MB SPI Flash EEPROM
Security Hardware
Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
System Lockdown
PC Health Monitoring CPU
4+1 Phase-switching voltage regulator
Monitors for CPU Cores, Chipset Voltages, Memory
FAN
Fans with tachometer monitoring
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Temperature
Monitoring for CPU and chassis environment
Thermal Control for fan connectors
Garantia Garantia de 3 anos on-site
